Line-up:
|
"Evolution Series" Flat Packs
|
|
Model:
|

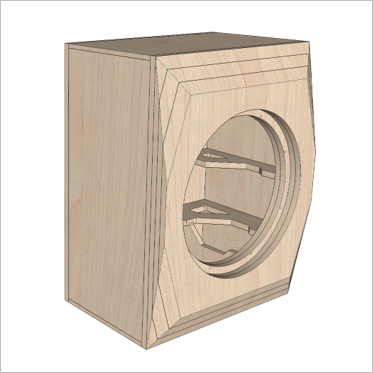

18-inch Sealed, Flat Pack
|
|
Design:
|
GSG ultimate spec brace design
Recessed driver, Speakon, oversized baffle chamfers
Sealed
|
|
Tuning:
|
n/a
|
|
Finish:
|
Unfinished MDF panels
|
|
Hardware:
|
Driver mounting bolts and inserts (included), feet (included), and dowels (included)
|
|
Output:
|
>122dB @ 70Hz (single; +6dB for duals)
>109dB @ 20Hz (single; +6dB for duals)
|
|
Rec. Driver:
|
18” driver (UM18, etc.)
|
|
Rec. Power:
|
2,000-5,000 watts+ depending on amp/driver combination
|
|
Dimensions:
|
30.9" high x 23.4” wide x 16.9” deep
|
|
Weight:
|
Approx. 140 lbs. each flat pack; total shipping weight including packing and pallet approximately 185 lbs.
|
|
Warranty:
|
1 Year limited warranty against manufacturing and material defects. Please inspect your cabinet carefully prior to assembly as no returns can be accepted once assembly (glue up) has begun. Customer is responsible for return shipping and restocking fee.
|
|
Protective High Pass
|
High Pass Filter (all drivers): varies depending on driver, not required with UM18
|
|
Rec. EQ:
|
Parametric EQ (UM-18):
Freq=20Hz, Q=1.0, Gain=+6dB
Phase:
180 deg (NX and iNuke amps)
|
