Line-up:
|
"Evolution Series" Flat Packs
|
|
Model:
|

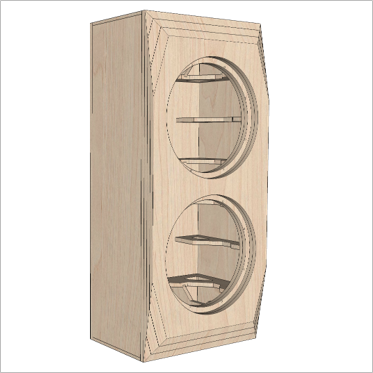

Dual 18-inch Sealed, Flat Pack
|
|
Design:
|
GSG ultimate spec brace design
Recessed driver, Speakon, oversized baffle chamfers
Sealed
|
|
Tuning:
|
n/a
|
|
Finish:
|
Unfinished MDF panels
|
|
Hardware:
|
Driver mounting bolts and inserts (included), feet (included), and dowels (included)
|
|
Output:
|
>128dB @ 70Hz (single unit; +6dB for two units)
>115dB @ 20Hz (single unit; +6dB for two units)
|
|
Rec. Driver:
|
18” driver (UM18, etc.)
|
|
Rec. Power:
|
1,000-5,000 watts+ depending on amp/driver combination
|
|
Dimensions:
|
52.0" high x 23.4” wide x 16.9” deep
|
|
Weight:
|
Approx. 210 lbs. each flat pack; total shipping weight including packing and pallet approximately 250 lbs.
|
|
Warranty:
|
1 Year limited warranty against manufacturing and material defects. Please inspect your cabinet carefully prior to assembly as no returns can be accepted once assembly (glue up) has begun. Customer is responsible for return shipping and restocking fee.
|
|
Protective High Pass
|
High Pass Filter (all drivers): varies depending on driver, not required with UM18
|
|
Rec. EQ:
|
Parametric EQ (UM-18):
Freq=20Hz, Q=1.0, Gain=+6dB
Phase:
180 deg (NX and iNuke amps)
|
