ATTENTION:
Shipping is now automatically calculated in the shopping cart for drivers, amplifiers, and single pallet orders to residential addresses in the USA.
If ordering multiple pallets, shipping to a business address, and/or for orders to Canada, please send an email to sales@gsgad.com for a shipping quote and/or shipping discount coupon.
In your email, please include:
1. The products that you intend to purchase
2. Your full shipping address
3. If it is a business address, does the business have a loading dock or forklift
Shipping to a business address WITHOUT a loading dock or forklift will typically be $50 lower than residential shipping.
Shipping to a business address WITH a loading dock or forklift will typically be $100 lower than residential shipping.

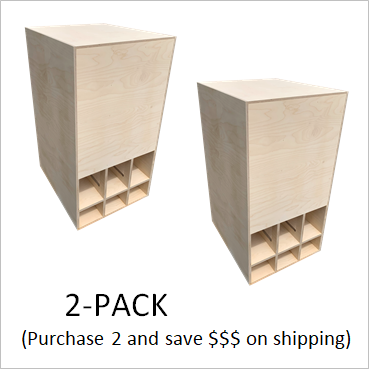

All GSG flat packs ARE AVAILABLE for local pickup. No freight charges!
ASSEMBLY REQUIRED (Assembly Instructions)
ADDITIONAL HARDWARE IS REQUIRED (Shopping List)
TECHNICAL SPECIFICATIONS
|
Line-up:
|
GSG Ported Horn Subwoofers
|
|
Model:
|
Devastator 21" in Baltic Birch Music Edition (28Hz)
|
|
Design:
|
GSG fully-interlocking brace design (patent pending),
recessed driver, and accommodation for both terminal cup and Speakon connections.
5th-order bandpass (aka "ported horn")
|
|
Tuning:
|
28Hz ported section
90Hz horn section (maximum efficiency)
|
|
Finish:
|
Unfinished Baltic Birch panels
|
|
Hardware:
|
Not included - see instructions
|
|
Output:
|
>133dB @ 80Hz; burstable output 3dB higher
|
|
Rec. Driver:
|
21” pro-audio driver (SAN214.50, NSW6021-6, 21DS115-4)
|
|
Rec. Power:
|
2,000-5,000 watts+ depending on amp/driver combination
(This cab works very well with the LaVoce 21SAN4.50 driver on one channel of an NX6000/NX6000D amplifier or a bridged NX3000/NX3000D).
|
|
Dimensions:
|
47.50" high, 24.75” wide, 30.00” deep
(120.7cm x 62.9cm x 76.2cm) assembled
|
|
Weight:
|
Approx. 190 lbs. each flat pack; total shipping weight including packing and pallet approximately 415 lbs.
|
|
Warranty:
|
1 Year limited warranty against manufacturing and material defects. Please inspect your cabinet carefully prior to assembly as no returns can be accepted once assembly (glue up) has begun. Customer is responsible for return shipping and restocking fee.
|
|
Protective High Pass
|
High Pass Filter:
12dB / octave Butterworth @25-28 Hz
|
|
Rec. EQ:
|
Parametric EQ:
Freq=28Hz, Q=1.2, Gain=+5dB
Overall Level Adjustment:
Gain= -5dB
Phase:
180 deg (NX and iNuke amps)
|
