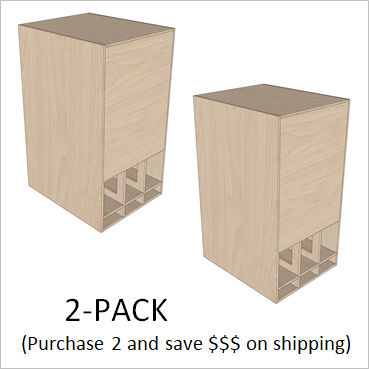

Devastator MkII 21-Inch Ported Horn Home Theater Edition (19Hz Tuning) - Two Pack

Devastator MkII 21-Inch Ported Horn Home Theater Edition (19Hz Tuning) - Two Pack

$2,598.00 $1,169.00 Sale

ATTENTION:

Shipping is now automatically calculated in the shopping cart for drivers, amplifiers, and single pallet orders to residential addresses in the USA.

If ordering multiple pallets, shipping to a business address, and/or for orders to Canada, please send an email to sales@gsgad.com for a shipping quote and/or shipping discount coupon.

In your email, please include:
1. The products that you intend to purchase
2. Your full shipping address
3. If it is a business address, does the business have a loading dock or forklift

Shipping to a business address WITHOUT a loading dock or forklift will typically be $50 lower than residential shipping.

Shipping to a business address WITH a loading dock or forklift will typically be $100 lower than residential shipping.

All GSG flat packs ARE AVAILABLE for local pickup. No freight charges!

ASSEMBLY REQUIRED (Assembly Instructions)

ADDITIONAL HARDWARE IS REQUIRED (Shopping List)

TECHNICAL SPECIFICATIONS

Line-up:

GSG Ported Horn Subwoofers

Model:

Devastator 21"

Design:

GSG fully-interlocking brace design (patent pending),
recessed driver, and accommodation for both terminal cup and Speakon connections.
5th-order bandpass (aka "ported horn")

Tuning:

19Hz ported section
90Hz horn section (maximum efficiency)

Finish:

Unfinished panels

Hardware:

Not included - see instructions

Output:

>133dB @ 80Hz; burstable output 3dB higher

Rec. Driver:

21” pro-audio driver (SAN214.50, NSW6021-6, 21DS115-4)

Rec. Power:

2,000-5,000 watts+ depending on amp/driver combination
(This cab works very well with the LaVoce 21SAN4.50 driver on one channel of an NX6000/NX6000D amplifier or a bridged NX3000/NX3000D).

Dimensions:

47.50" high, 24.75” wide, 30.00” deep
(120.7cm x 62.9cm x 76.2cm) assembled

Weight:

Approx. 190 lbs. each flat pack; total shipping weight including packing and pallet approximately 415 lbs.

Warranty:

1 Year limited warranty against manufacturing and material defects.  Please inspect your cabinet carefully prior to assembly as no returns can be accepted once assembly (glue up) has begun.  Customer is responsible for return shipping and restocking fee.

Protective High Pass

High Pass Filter:
12dB / octave Butterworth @17-20 Hz

Rec. EQ:

Parametric EQ:
Freq=20Hz, Q=0.7, Gain=+12dB

Overall Level Adjustment:
Gain= -12dB

Phase:
180 deg (NX and iNuke amps)
