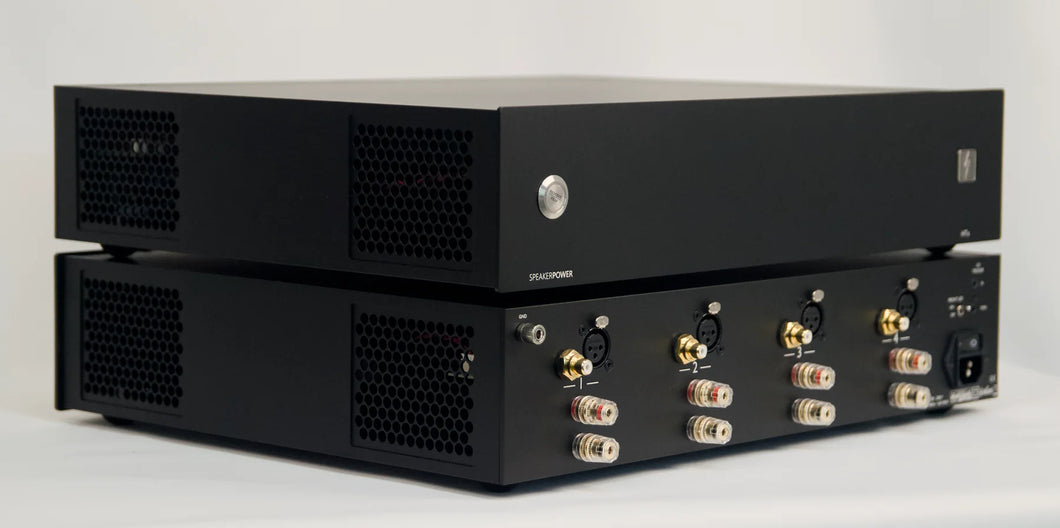

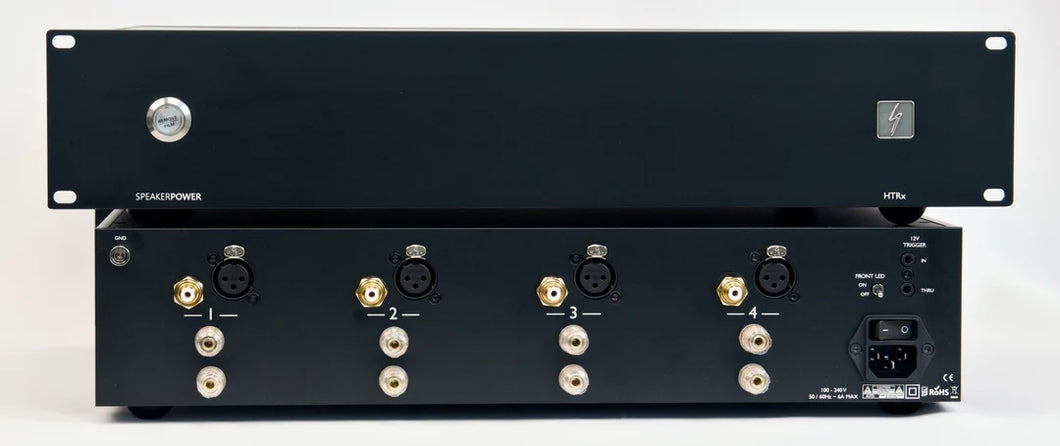

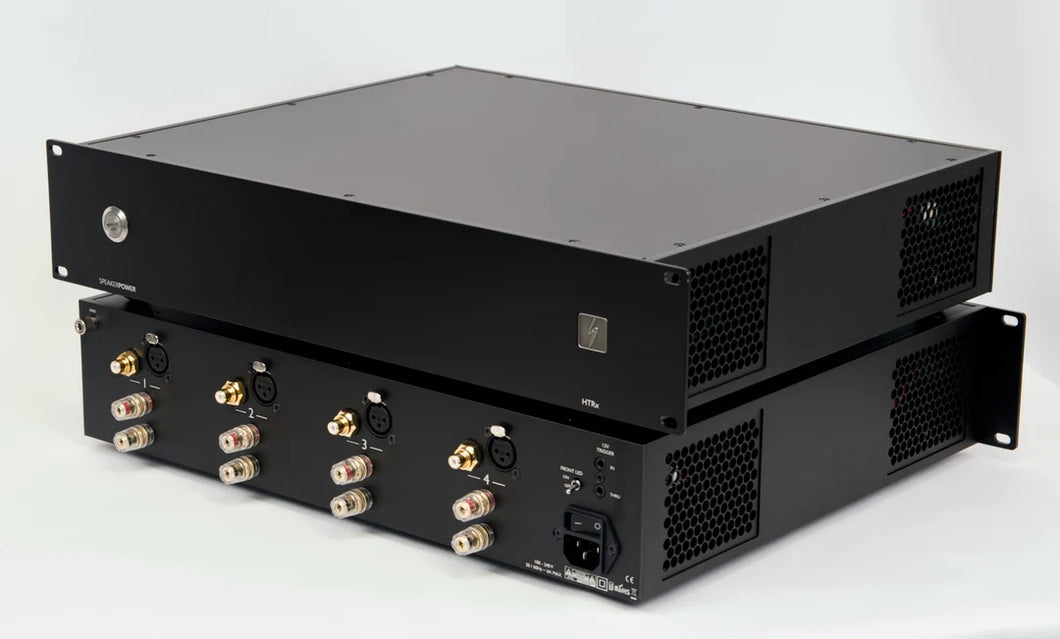

HTRx4-1200 Amplifier (Rack-mount)

Line-up:

SpeakerPower HTR Amplifiers

Model:

HTRx4-1200

Channels:

Four (4) discrete channels

Connections:

Inputs: RCA and XLR inputs

Control: 12v trigger for automatic power on / power off

Outputs: Five (5) way binding posts

Power:

1200 W RMS per channel @ 4 ohms

600 W RMS per channel @ 8 ohms

Gain:

25.8dB

Output voltage:

70.7 V RMS

Input sensitivity:

3.5 V RMS

Signal to Noise:

127dB (@ max rated power)

Frequency response:

3 Hz - 70 kHz

Wall voltage:

100-265VAC 50/60Hz

120VAC 60Hz is the standard in the USA.

Dimensions:

3.5" high
19" wide
14.5" deep
